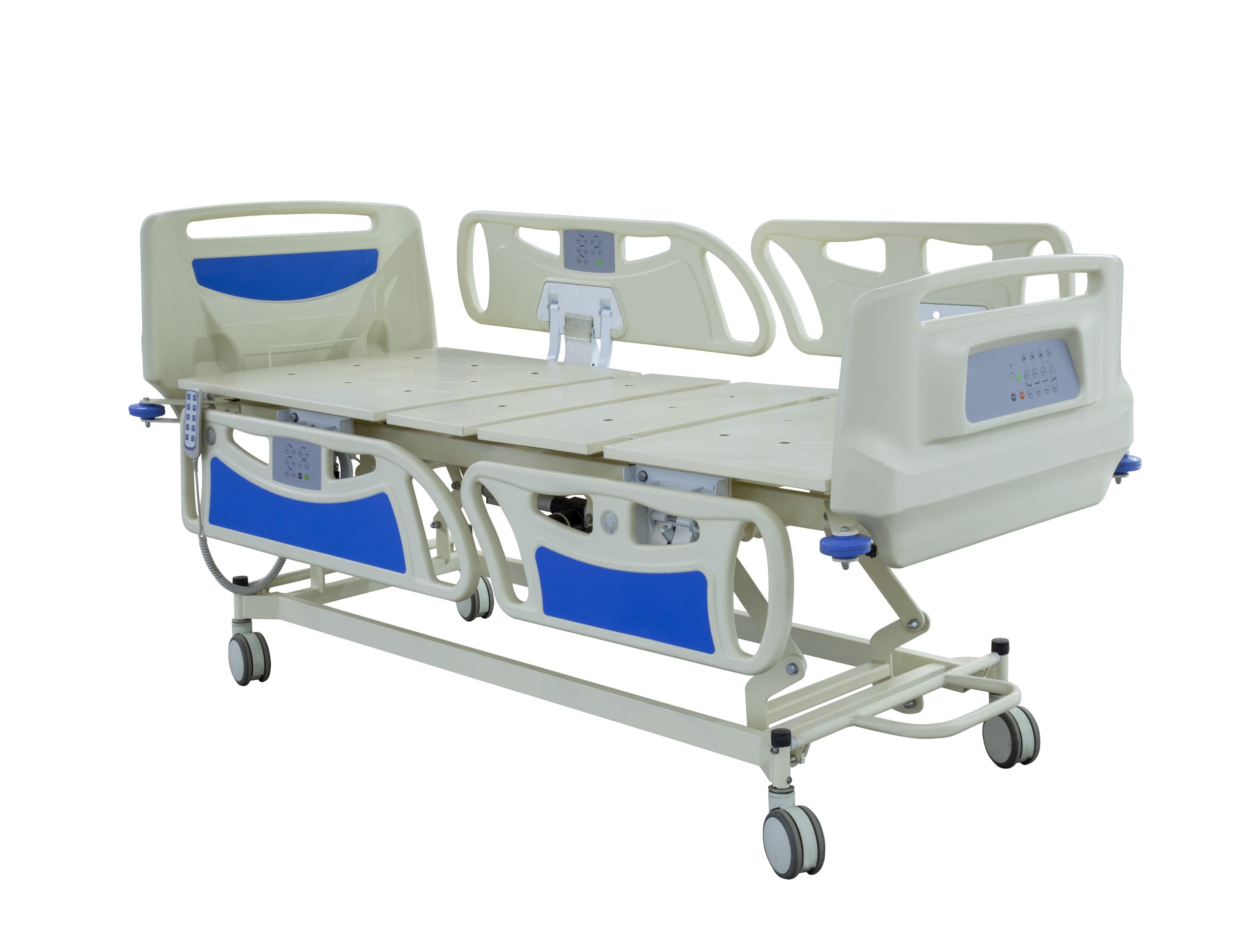

The EHB-05 5 Functions Electrical Hospital Bed is designed for hospitals and clinics that need reliable positioning, safe patient handling, and easy caregiver control. With electric adjustments, a CPR function, and multiple control points, it supports efficient daily care.
Features
- Electrostatic painted steel frame with ABS head and foot boards
- Electrical backrest tilting: 0° to 70° (±5°)
- Electrical footrest tilting: 0° to 35° (±5°)
- Electrical Hi/Lo height adjustment
- Electrical whole bed forward tilt
- Electrical whole bed backward tilt
- Under-bed light option for improved visibility
- CPR function for quick positioning support
- 5″ heavy-duty silent casters with central brake system
- ABS side rails with side control panel and battery
- Battery-backed control to operate in absence of electricity
- Triple control units: handset control, side control units, and foot board control unit
Benefits
- Supports caregiver efficiency with electric positioning from multiple control points
- Helps improve patient comfort through adjustable backrest and leg positioning
- Enhances safety during transfers and routine care with central braking casters
- Maintains operational control during power interruptions via battery-backed controls
- Supports faster response workflows with the CPR function when needed
- Improves nighttime visibility and movement around the bed with the under-bed light option
Specs
- Model: EHB-05
- Type: 5 Functions Electrical Hospital Bed
- Frame material: Electrostatic painted steel
- Head/foot boards: ABS
- Backrest tilt: 0° to 70° (±5°), electrical
- Footrest tilt: 0° to 35° (±5°), electrical
- Height adjustment: Hi/Lo, electrical
- Whole bed tilt: Forward tilt, electrical
- Whole bed tilt: Backward tilt, electrical
- Lighting: Under-bed light option
- Emergency feature: CPR function
- Casters: 5″ heavy-duty silent casters
- Braking system: Central brakes system
- Side rails: ABS side rails with side control panel and battery
- Control units: Handset control, side control units, foot board control unit
- Max loading capacity: 200 kg
Usage
Ideal for hospitals, clinics, and medical facilities that require flexible patient positioning for daily care and monitoring.
Recommended for:
- Patient comfort positioning (backrest and leg adjustments)
- Nursing care routines and caregiver workflows (Hi/Lo and multi-point control)
- Safer bed movement and positioning in wards (silent casters with central brakes)
Operational note: - The bed can be controlled during power absence using the built-in battery-backed controls on the side rails.
FAQs
1) What are the 5 functions included in the EHB-05 bed?
Electric backrest tilt, electric footrest tilt, electric Hi/Lo height adjustment, electric whole bed forward tilt, and electric whole bed backward tilt.
2) Can the bed be operated if there is no electricity?
Yes. The side rails include a control panel with a battery, allowing control in the absence of electricity.
3) What control options are available for caregivers?
Triple control units are included: handset control, side control units, and a foot board control unit.
4) Does the bed include a braking system for safety?
Yes. It has 5″ heavy-duty silent casters with a central brakes system.
5) What is the maximum loading capacity?
The maximum loading capacity is 200 kg.
